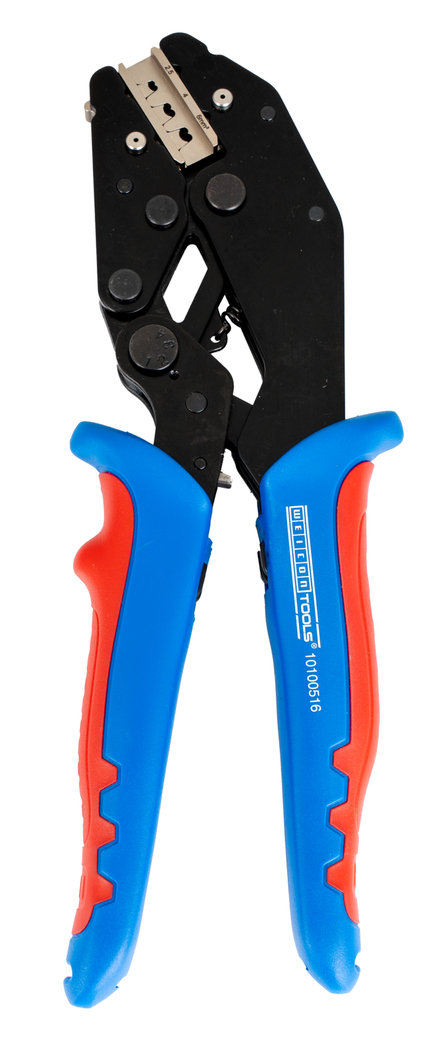

Crimp tool ERGO
for crimping MC4 connectors/insulated wire end ferrules/insulated cable lugs
AED 419.99*
AED 399.99*
Description

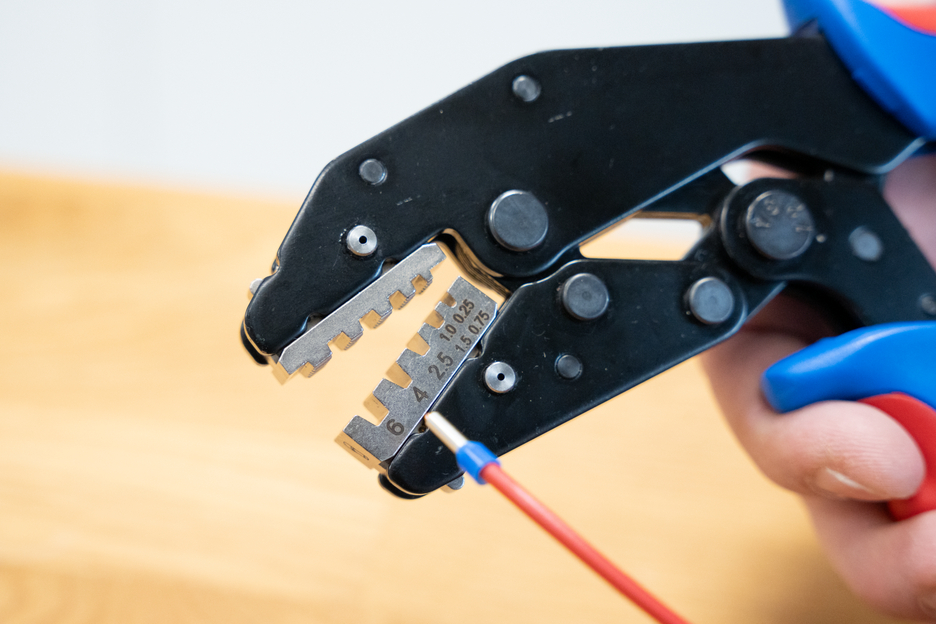

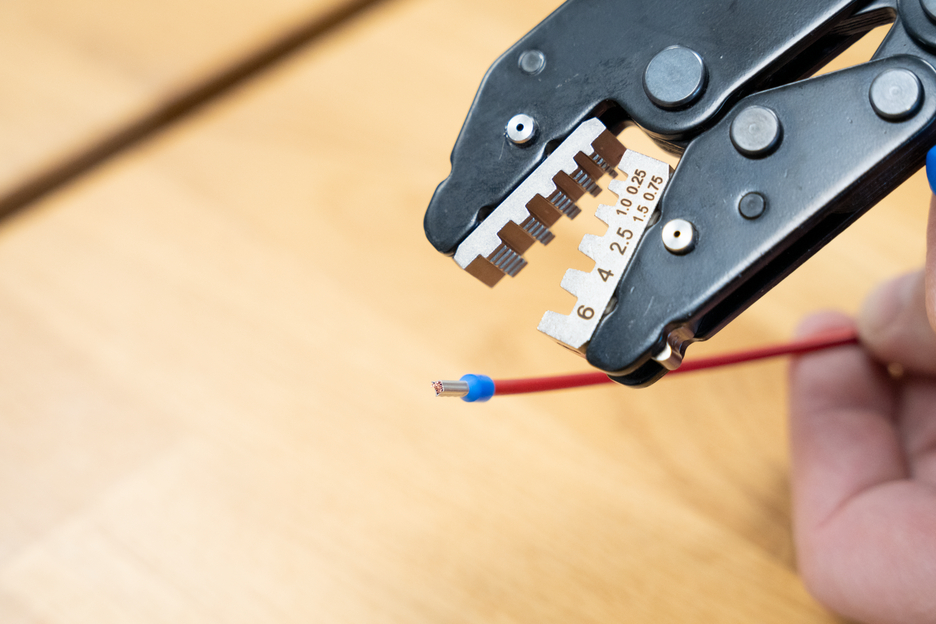

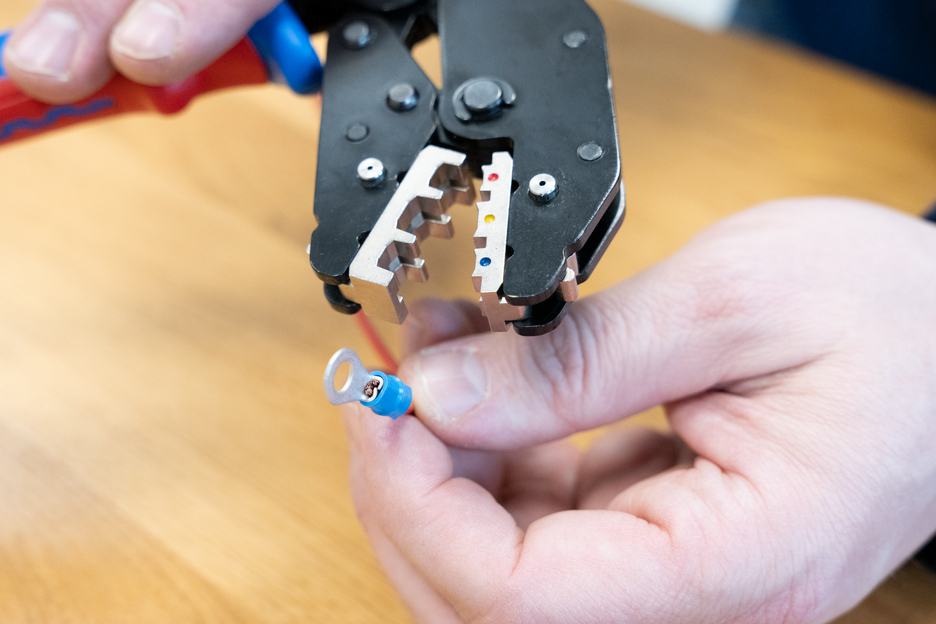

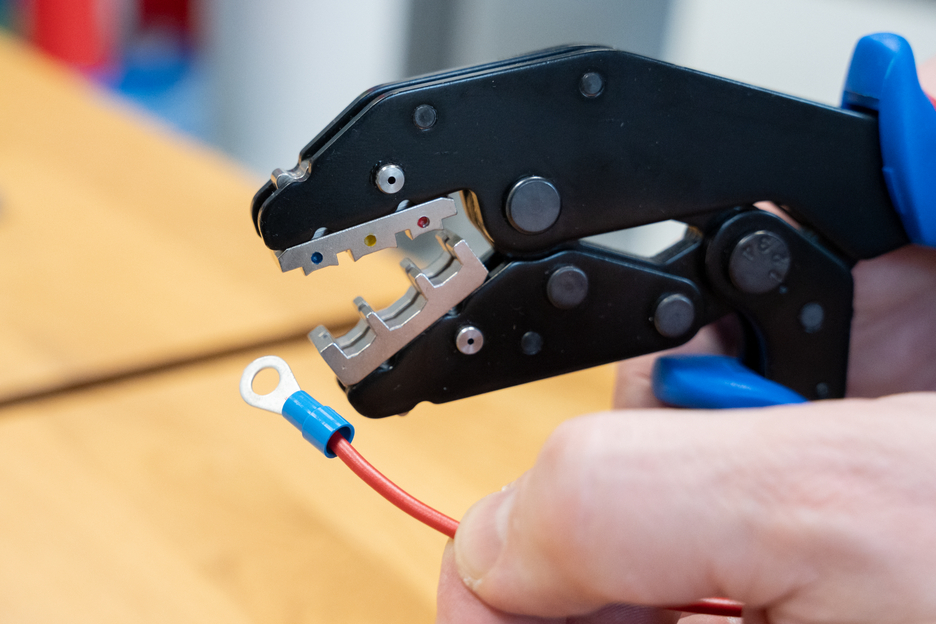

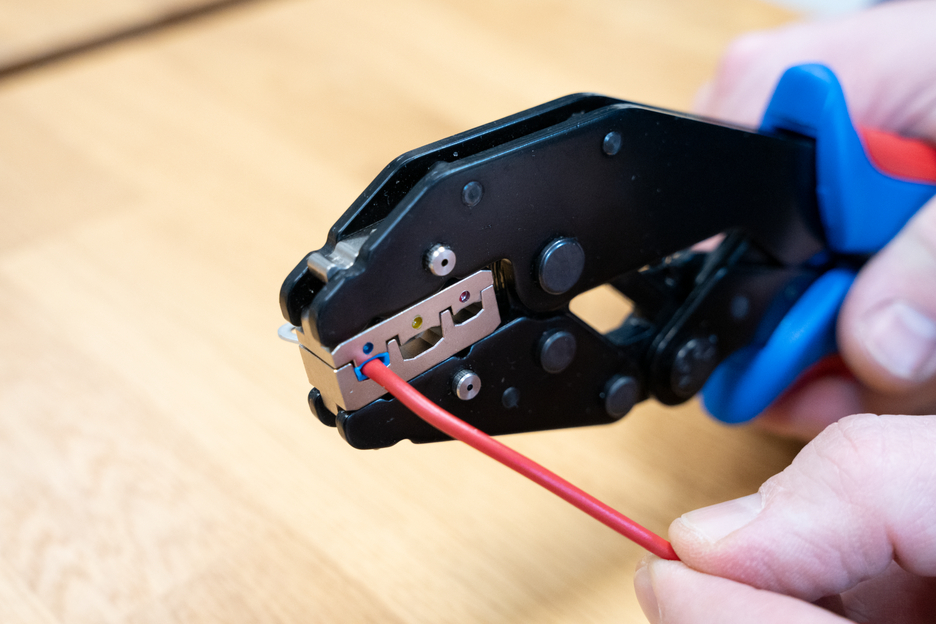

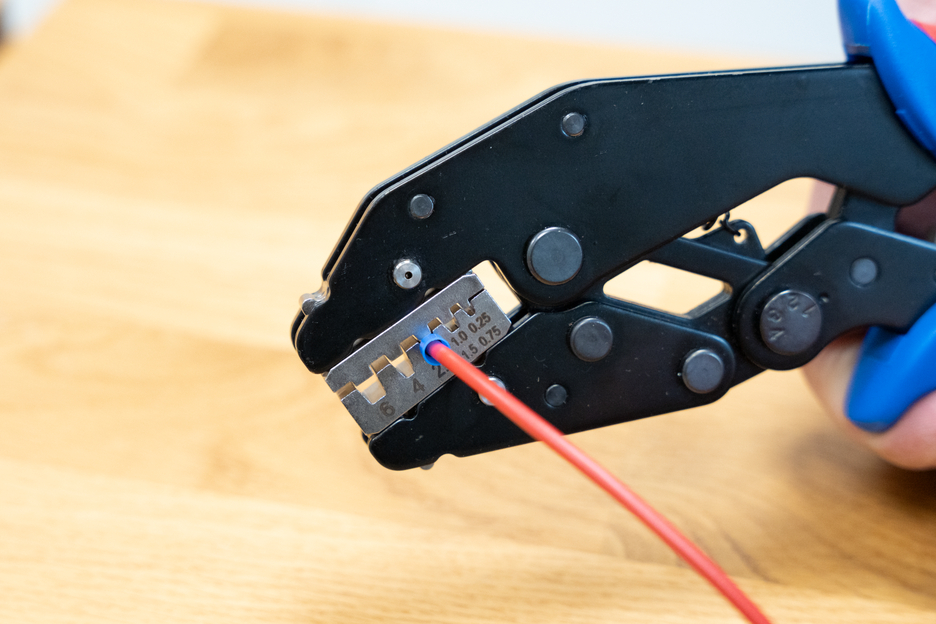

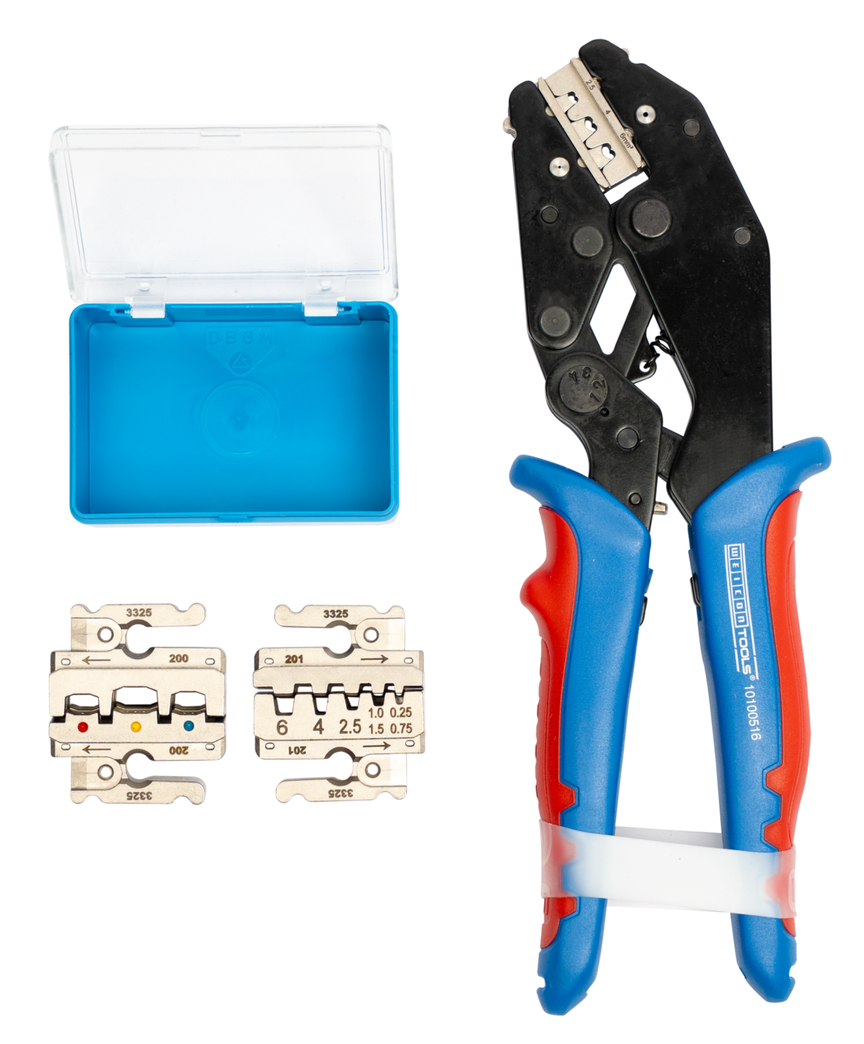

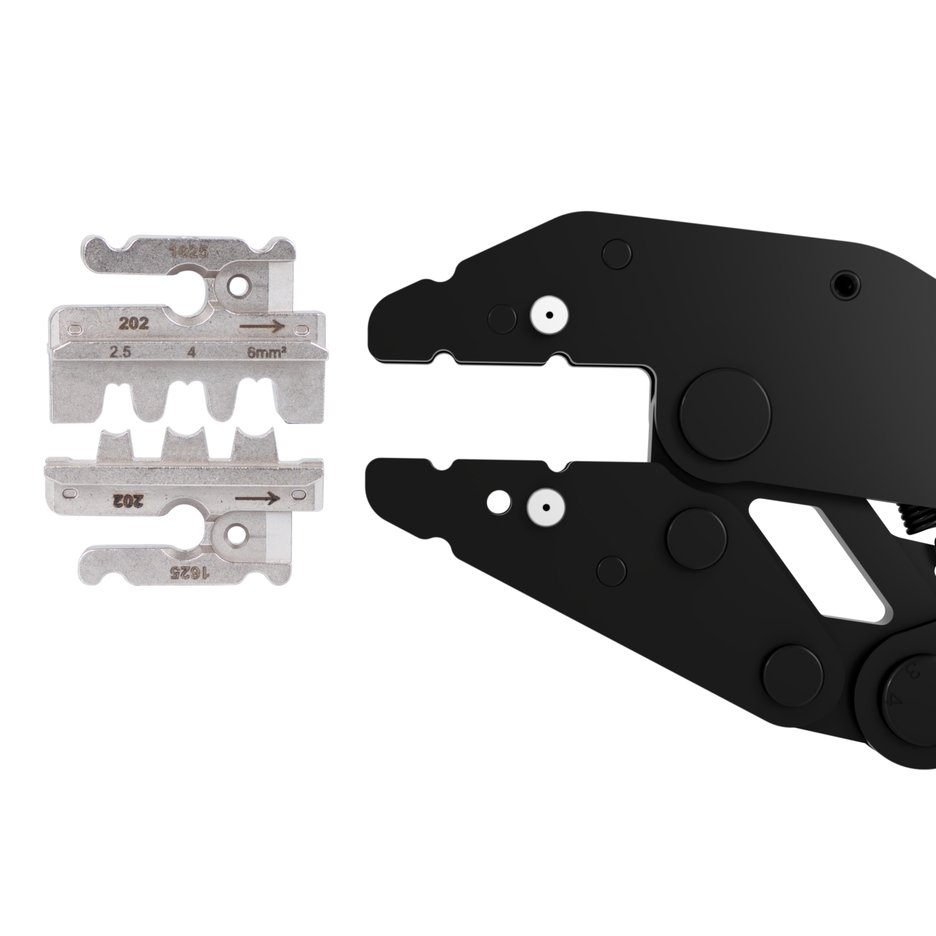

ERGO-CRIMP was developed for the process-safe crimping of various electrical connectors. The crimping tool has a ratchet mechanism with a blocking device to ensure a consistently high crimping quality and results that can be precisely repeated. The mechanism only opens the tool when the crimping process is complete. In addition, an emergency release has been integrated into the handle, which allows the user to open the crimping tool whenever necessary, e.g. in the event of misuse. Another special feature is the adjustable crimping force, which ensures a high crimping quality thanks to the precise eccentric setting. With the Multi Change System, the crimp modules can be exchanged quickly, as needed. The simple change system, which requires no additional tools, ensures that the modules can be installed and removed fast. The ERGO-CRIMP tool includes three pairs of modules made of high-quality steel. One module is suitable for MC4 connectors with cable cross-sections of 2.5 mm², 4 mm² and 6 mm² (14-10 AWG). Another pair of modules is suitable for insulated wire end ferrules from 0.25-6 mm² (AWG 24-10). The third pair of modules was developed for insulated cable lugs from 0.5-6mm² (AWG 22-10). The three pairs of modules are stored safely and protected from dust in a small plastic box. Additional module pairs are also available as accessories. The 2-component handles ensure non-slip and ergonomically friendly handling for maximum force transmission. The tried-and-tested “ice-crack design” was used, which ensures a comfortable feel. The integrated eyelets on the handles can be used to attach a safety catch.
Downloads
Information

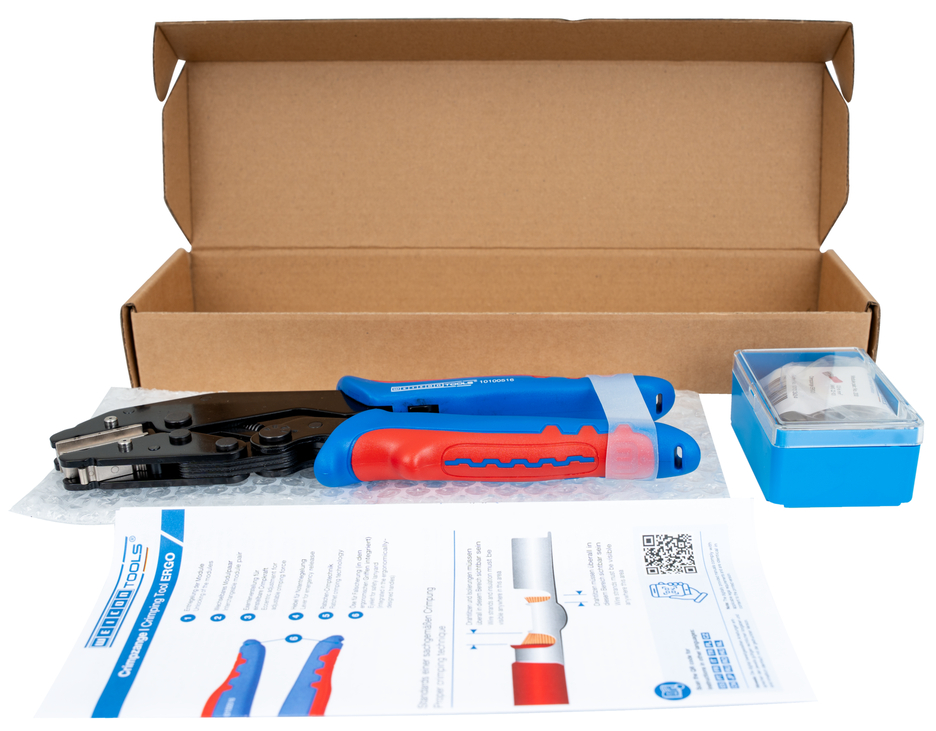

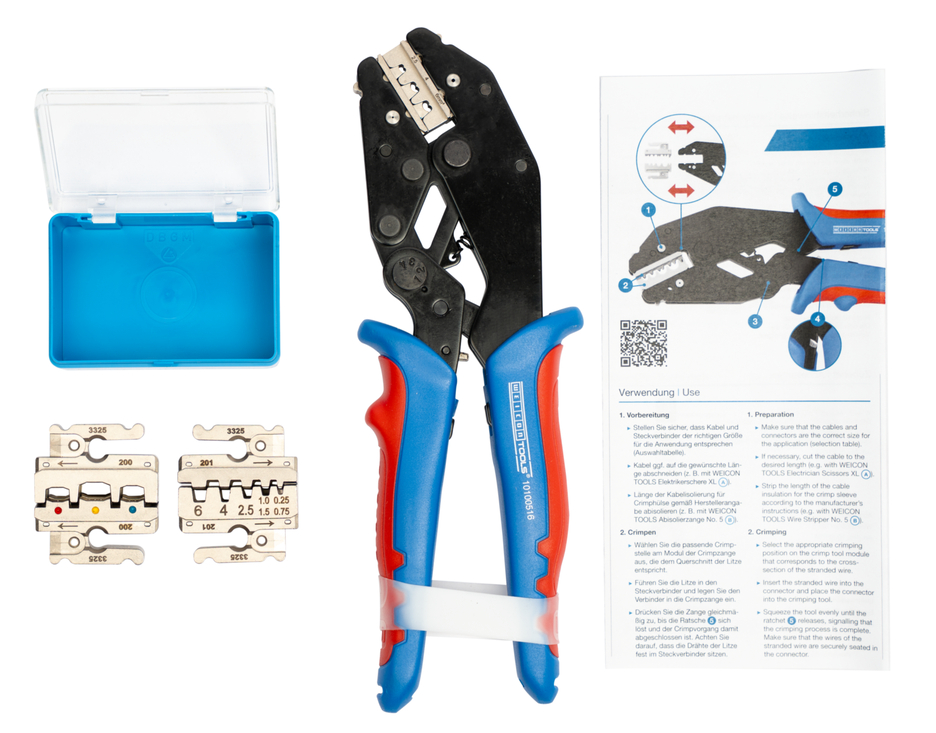

- Tool

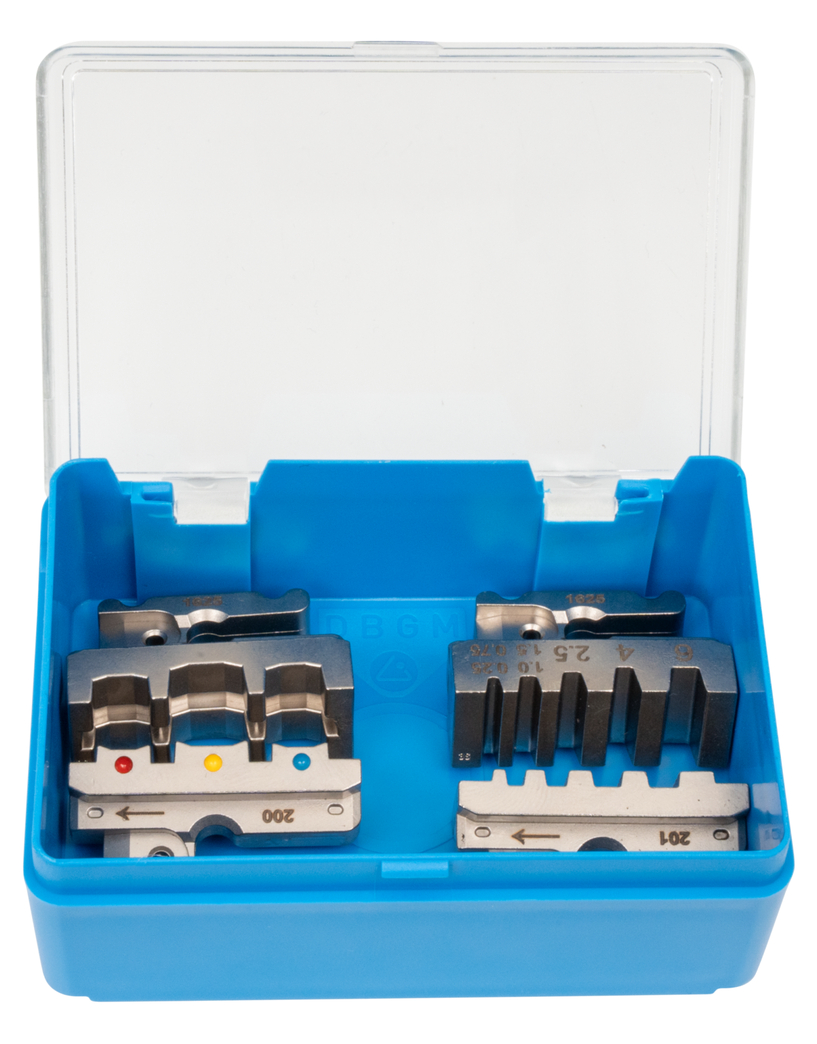

- Box with crimp modules
- Instructions for use
1 of 1 reviews
Average rating of 4 out of 5 stars
4 out of 5 stars
Login
1 review
30 July 2025 08:43
Review with rating of 4 out of 5 stars
Super Crimpzange
Ich habe die Zange nun seit einigen Wochen im Einsatz und ich bin begeistert. Vor allem die ergonomische Form und der Griff mit den 2 Komponenten gefallen mir sehr gut. Das Vercrimpen funktioniert auch einwandfrei!
Our recommendations
(AED 83.99* / 1 PCE)
Average rating of 5 out of 5 stars
(AED 48.30* / 100 ml)
Average rating of 5 out of 5 stars
(AED 210.00* / 1 PCE)
(AED 435.75* / 1 PCE)
Average rating of 5 out of 5 stars
(AED 142.79* / 1 PCE)
(AED 140.00* / 1 PCE)
Average rating of 5 out of 5 stars
Product safety
Attention:
Tool not to be used on live cables or conductors.
