Description

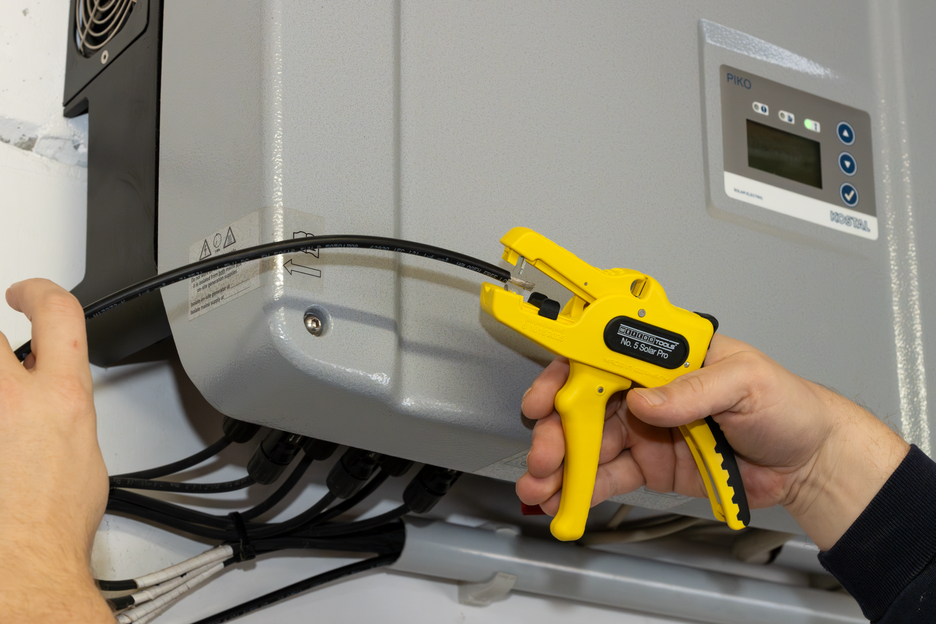

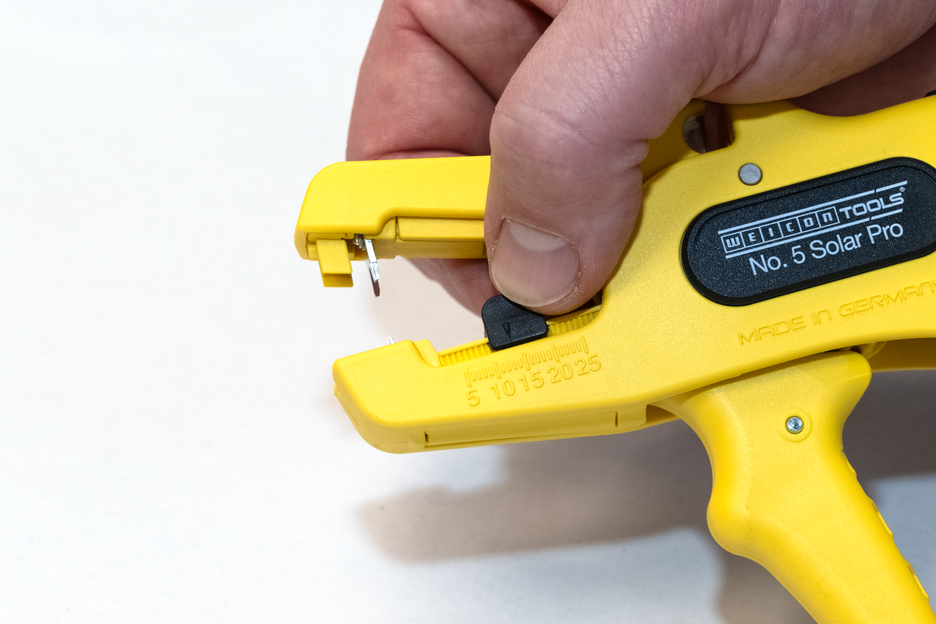

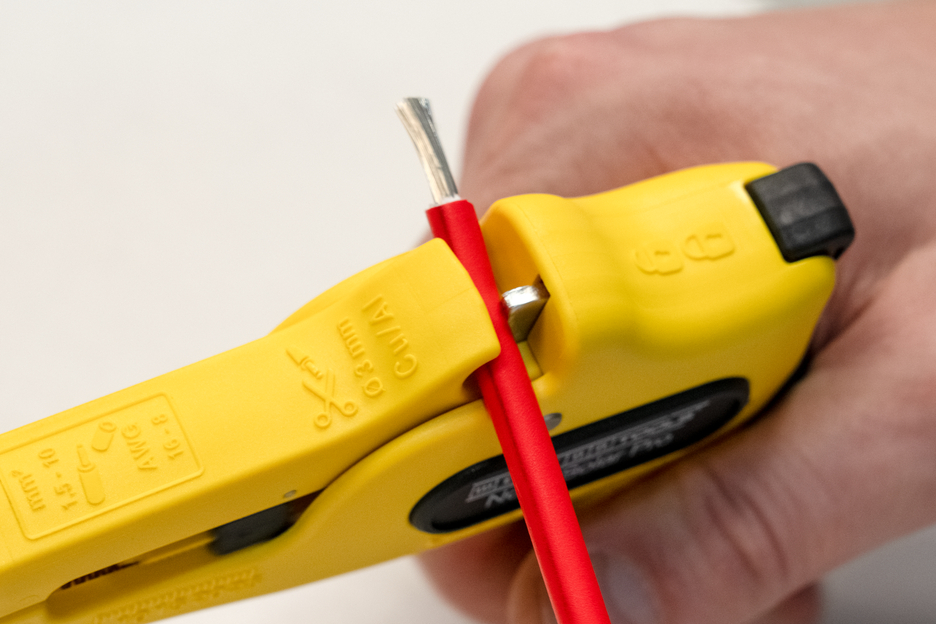

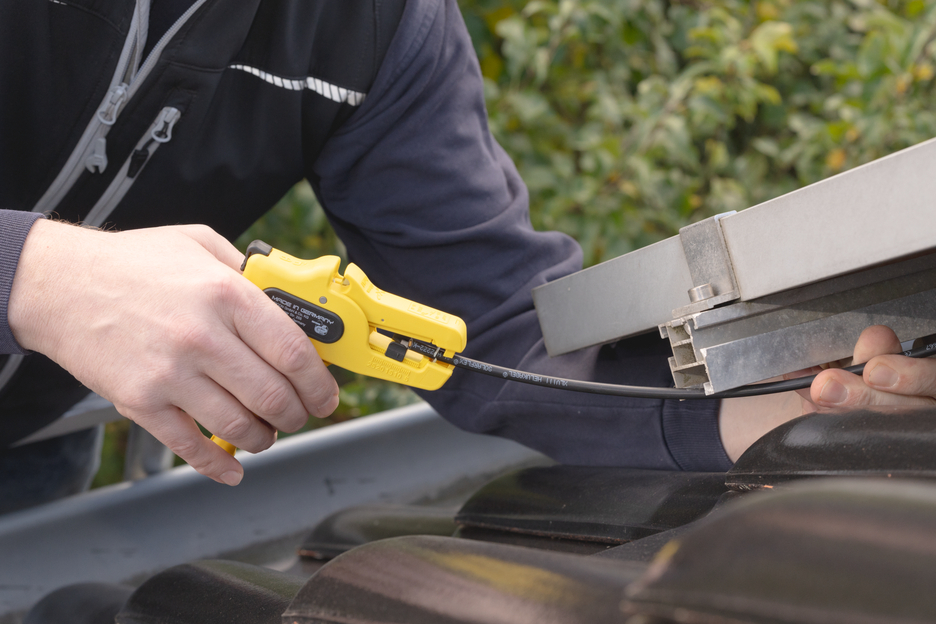

The automatic wire stripper is used to strip all common solar cables, such as H1Z2Z2-K from 1.5 to 10 mm². The adjustable length stop ranging from 5 to 25 mm ensures excellent precision and accuracy. The blades of the Wire Stripper No. 5 Solar Pro have been additionally hardened. Therefore, they can easily remove multi-layer rubberised insulation. If required, the length stop can be removed. The wire stripper automatically adjusts to the required conductor cross-section, so no manual adjustment is necessary. The tool features an integrated side cutter, which is suitable for conductors made of copper and aluminium up to a diameter of three millimetres. Thanks to its slim design, the wire stripper can also be used in areas that are difficult to access, such as on solar modules or on the inverter. The mechanics of the tool are very smooth-running and have proven to be durable and reliable in numerous tests. The wire stripper has a non-slip multi-component handle in a yellow and black “ice crack” design. It has an eyelet to attach a strap for fall protection, and it has a labelling area where the tool can be personalised. In addition, the wire stripper has a locking mechanism for space-saving storage. As with all strippers in the No. 5 product line, the galvanised blades can be replaced.
Downloads
Information
- Tool
Login
1 review
16 January 2026 07:25
Pinza Spelafili No. 5 Solar Pro
Ho recentemente acquistato la WEICON Pinza Spelafili No. 5 Solar Pro e devo dire che è uno strumento eccezionale per lavorare con i cavi solari. La possibilità di sguainare cavi da 1,5 mm² a 10 mm² con una lunghezza regolabile è incrediblimente utile, e ho apprezzato molto la tronchesina integrta per i conduttori in rame e alluminio. L'impugnatura ergonomica e antiscivolo rende il lavoro privo di affaticamento anche durante le lunghe sessioni, e la meccanica scorrevole garantisce una durata nel tempo. Assolutamente consigliata per chi lavora nel settore solare!
Customers also bought
(AED 185.96* / 1 PCE)
(AED 115.50* / 1 PCE)
(AED 207.90* / 1 L)
(AED 113.47* / 100 g)
(AED 231.00* / 1 L)
Customers also viewed
(AED 1,524.60* / 1 kg)
(AED 639.06* / 1 kg)
(AED 242.55* / 1 L)
Product safety
Attention:
Tool not to be used on live cables or conductors.
